China OEM Foundry Ductile Iron Sand Casting Water Pump Housing
Product Details
| Material | Gray iron, ductile iron, |
| Process | Shell mold casting + cnc machining |
| Casting dimension tolerance | CT9 |
| Casting surface roughness | Ra 12.5 um |
| Casting weight range | 0.1-90 kg |
| Casting Size | Max linear size: 1200 mm, Max diameter size: 600 mm |
| Machining Precision | Positioning accuracy 0.008 mm, Rep. position. accuracy 0.006 mm |
| Machining surface roughness | Ra0.8 ~ 6.3 um |
| Max Travel Of Spindle | 1900 mm x 850 mm x 700 mm |
| Max Turning Diameter | 830 mm |
| Material standard | GB, ASTM, AISI, DIN, BS, JIS, NF, AS, AAR |
| Surface treatment | KTL (E-coating), Zinc plating, Mirror Polishing, Sand Blasting, Acid pickling, black oxide, Painting, Hot galvanizing,Powder coating, Nickel plating. |
| Service available | OEM & ODM |
| Quality control | 0 defects,100% inspection before packing |
| Application | Train & railway, automobile& truck, construction machinery, forklift, agricultural machinery, shipbuilding, petroleum machinery, construction, valve and pumps, electric machine, hardware, power equipment and so on. |
| Keywords | sand casting, shell mold casting, iron casting, ductile iron casting, adi casting |
Production Process
Factory Introduction
Our main products are GG15 ~ GG30 gray iron castings and GGG40 ~ GGG70 ductile iron castings We can do the machining,we have the horizontal machining center, 5 vertical machining centers, 6183 type CNC lathe, 6166 type CNC lathe, 6163 type CNC lathes, 6152 type CNC lathes, 6140 type CNC lathes, 6136 type CNC lathes, 6132 type CNC lathes, CNC milling machines, broaching machine and other main machining equipments.
For the convenience of customers, our factory can custom all kinds of mould for clients to provide one-stop services from drawings to deliver castings, we uphold the 'customer focus and exceed customer expectations "business philosophy, in good faith with the pragmatic, wholeheartedly welcome the global merchants to patronize, complicity development, create brilliant.
Quality Control
FAQ
How can I get some samples of Iron casting,cast ductile iron,cast grey iron part?
If you need,we will offer you samples for free,but new customers are expected to pay express charge.
Do you provide customized parts?
Yes,Customers give us drawings and we will manufacture accordingly.
Can you make castings based on our sample of Iron casting,cast ductile iron,cast grey iron and cast steel part?
Yes,we can make measurement based on your samples to make drawings.
|
|

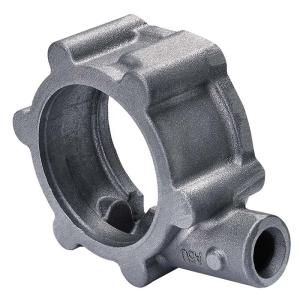

China OEM Foundry Ductile Iron Sand Casting Water Pump Housing Images
|
